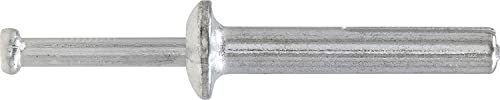

Hammer Drive Anchor 1/4″ Diameter (20, 2 inch Long)

Applications The anchor is made from ZAMAC.
This anchor is designed for use in Concrete, Block, and Brick.

Environment
The anchor is designed for use in a Dry environment.

Hole Diameter/Bit Diameter
The anchor requires a 1/4″ hole to be drilled in the base material (Concrete, Block, and Brick).
The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.

Diameter of Anchor
The diameter of the anchor is 1/4″.

Minimum Embedment
The minimum anchor embedment into the concrete is 3/4″.
Therefore, the anchor must be installed so
that a minimum of 3/4″ of the anchor is embedded into the concrete.

Spacing between Anchors
Each anchor must be spaced a minimum distance of 2-1/2″
from each other when measured center to center.

Edge Distance
It is very important not to install the anchor any closer than 1-1/4″
from an unsupported edge of the concrete.

Make sure this fits by entering your model number.
Material Zamac
Designed to act as a permanent anchor in applications that do not require quick disassembly
Recommended for light duty fastening in concrete, block, brick, and stone
Common applications include masonry anchorage, drywall track, electrical fixtures, gutters, and brackets
Anchor could pull out of material and fall when attempting to support an overhead load
Has a 1/2″ fixed mushroom washer head
