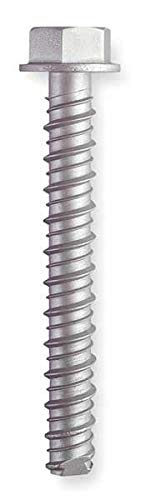

Red Head Anchor, Sawtooth, Pk10, (Pack of 3)

Screw Anchor, Anchor Screw Head Style Hex Washer, Anchor Material Steel, Material Grade Medium Carbon, Fastener Finish Electrolytic Galvanized, Anchor Dia. 5/8 in, Anchor Length 5 in, Seismic Approved No, Min. Embedment 2 3/4 in, Drill Bit Size 1/2 in, Max. Work Thickness 2 1/4 in, Ultimate Shear (Lb.) 14,839, Ultimate Tension (Lbs.) 16,891, Package Quantity 10

Specifications:

• Min. Embedment: 2 3/4 in
• Anchor Material: Steel
• Fastener Finish: Electrolytic Galvanized
• Anchor Screw Type: Screw Anchor
• Material: Hardened Steel
• Siesmic Approved: No
• Type: Self Threading
• Item: Screw Anchor
• Package Quantity: 10
• Anchor Length: 5 in
• Ultimate Tension (Lbs.): 16,891
• Anchor Dia.: 5/8 in
• Ultimate Shear (Lb.): 14,839
• ICC Approved for Cracked Concrete: No
• Seismic Approved: No
• ICC Approved for Un-Cracked Concrete: No
• Head Style: Hex Washer
• Length: 5″
• Anchor Screw Head Style: Hex Washer
• Material Grade: Medium Carbon
• Max. Work Thickness: 2 1/4 in
• Drill Bit Size: 1/2 in

This item has been restricted from sale in the following states:

PR

Make sure this fits by entering your model number.
Min. Embedment: 2 3/4 in
Anchor Material: Steel
Fastener Finish: Electrolytic Galvanized
Anchor Screw Type: Screw Anchor
Material: Hardened Steel
